HT PRECISION CNC MACHINE TOOLS
FULL MACHINE TOOL CATALOG

Precision Machine Tool Lineup

Engineered for continuous industrial metal cutting, tight tolerances, and maximum machine uptime.

VMC Machining Centers (3) Slant Bed Lathes (TCK) (3) Flat Bed Lathes (CK) (3)

VMC Machining Centers

High-speed precision milling, mold cavity machining, and structural brackets.

3 Models
VMC850 - High-Rigidity Precision Vertical Machining Center for Mold & Production VMC Series

VMC850

Meehanite FC-30

High-Rigidity Precision Vertical Machining Center for Mold & Production

Worktable Size 1000 × 500 mm
X/Y/Z Travel 800 / 500 / 500 mm
Spindle Taper BT40 (Ø150 mm)
Spindle Speed 8,000 / 10,000 / 12,000 RPM
View Specifications Instant Quote
VMC650 - Compact High-Speed Vertical Machining Center for Small Parts & Rapid Cycles VMC Series

VMC650

Meehanite FC-30

Compact High-Speed Vertical Machining Center for Small Parts & Rapid Cycles

Worktable Size 800 × 400 mm
X/Y/Z Travel 650 / 400 / 450 mm
Spindle Taper BT40 (Ø120 mm)
Spindle Speed 8,000 / 10,000 RPM
View Specifications Instant Quote
VMC855 - Heavy-Duty Precision Mold Machining Center with Extended Y-Axis Travel VMC Series

VMC855

Meehanite FC-30

Heavy-Duty Precision Mold Machining Center with Extended Y-Axis Travel

Worktable Size 1000 × 550 mm
X/Y/Z Travel 850 / 550 / 550 mm
Spindle Taper BT40 / BT50 Option
Spindle Speed 10,000 / 12,000 / 15,000 RPM
View Specifications Instant Quote

Slant Bed Lathes (TCK)

45° Monolithic slant bed casting, high-speed automated batch turning, and direct chip clearance.

3 Models
TCK50 - High-Rigidity 45° Slant Bed CNC Lathe for Mass Production Turning TCK Series

TCK50

Meehanite FC-30

High-Rigidity 45° Slant Bed CNC Lathe for Mass Production Turning

Max Swing Over Bed Ø500 mm
Max Turning Diameter Ø360 mm
Max Turning Length 500 mm
Spindle Nose / Speed A2-6 / 4,000 RPM
View Specifications Instant Quote
TCK52 - Versatile Slant Bed CNC Lathe with Enhanced Turning Diameter & Rigidity TCK Series

TCK52

Meehanite FC-30

Versatile Slant Bed CNC Lathe with Enhanced Turning Diameter & Rigidity

Max Swing Over Bed Ø520 mm
Max Turning Diameter Ø400 mm
Max Turning Length 500 / 750 mm
Spindle Nose / Speed A2-6 / A2-8 (3,500 RPM)
View Specifications Instant Quote
TCK56 - Heavy-Duty Slant Bed CNC Turning Center with Large Bore & Power Turret TCK Series

TCK56

Meehanite FC-30

Heavy-Duty Slant Bed CNC Turning Center with Large Bore & Power Turret

Max Swing Over Bed Ø560 mm
Max Turning Diameter Ø450 mm
Max Turning Length 750 / 1000 mm
Spindle Nose / Speed A2-8 / 2,500 RPM
View Specifications Instant Quote

Flat Bed Lathes (CK)

Induction-hardened bedways, large spindle bores up to Ø105mm, and heavy turning capacity.

3 Models

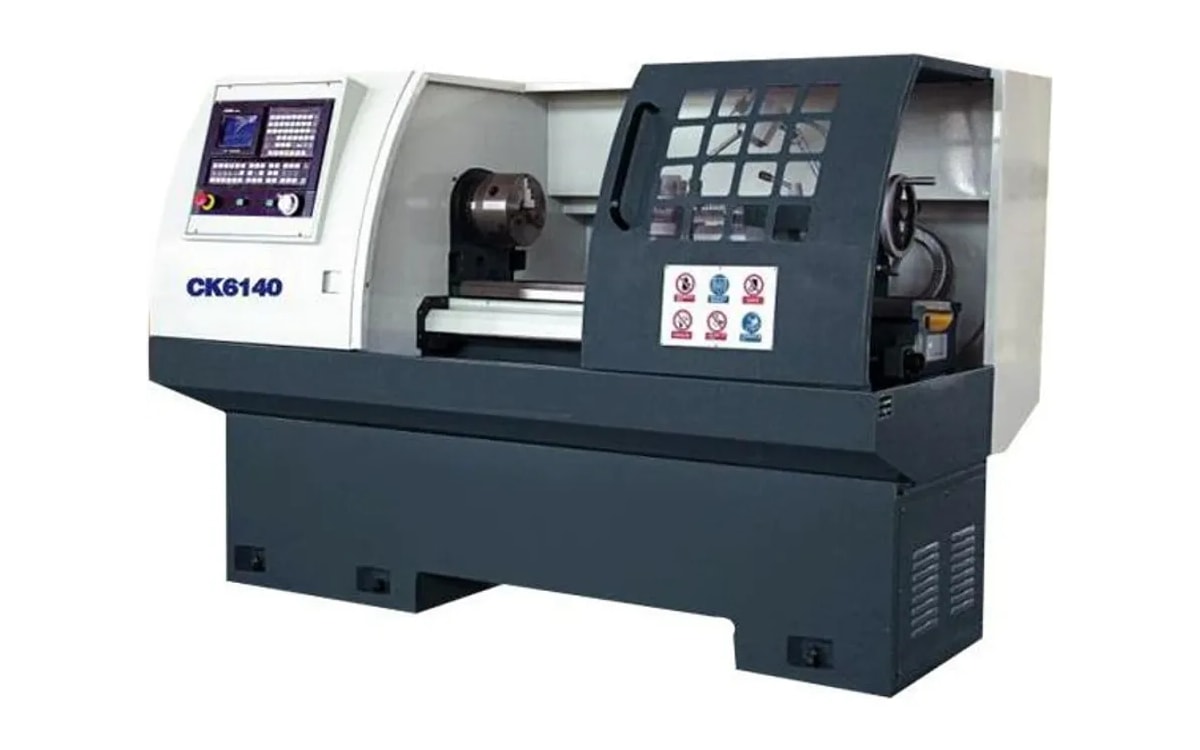

CK6140 - High-Precision Flat Bed CNC Lathe for Shaft & Disc Component Turning CK Series

CK6140

Meehanite FC-30

High-Precision Flat Bed CNC Lathe for Shaft & Disc Component Turning

Max Swing Over Bed Ø400 mm
Swing Over Carriage Ø220 mm
Max Turning Length 750 / 1000 mm
Spindle Bore Ø52 mm
View Specifications Instant Quote

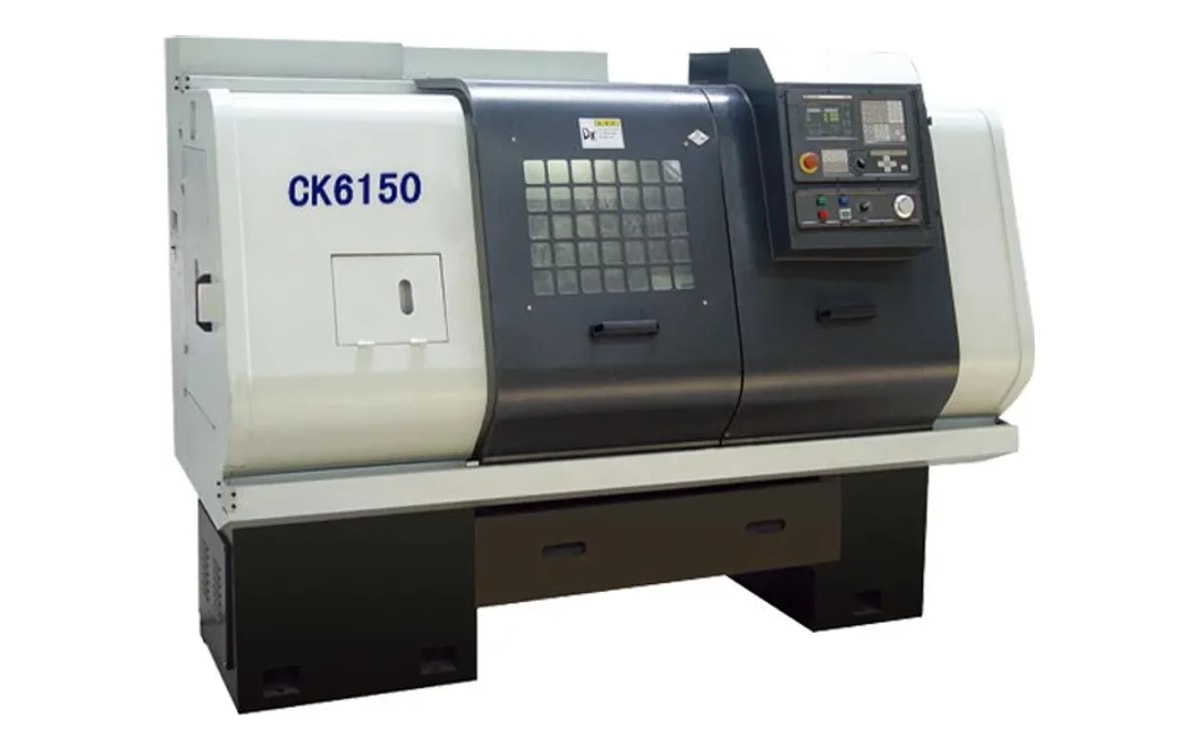

CK6150 - Medium Heavy-Duty Flat Bed CNC Lathe with Large Ø82mm Spindle Bore CK Series

CK6150

Meehanite FC-30

Medium Heavy-Duty Flat Bed CNC Lathe with Large Ø82mm Spindle Bore

Max Swing Over Bed Ø500 mm
Swing Over Carriage Ø280 mm
Max Turning Length 1000 / 1500 mm
Spindle Bore Ø82 mm
View Specifications Instant Quote

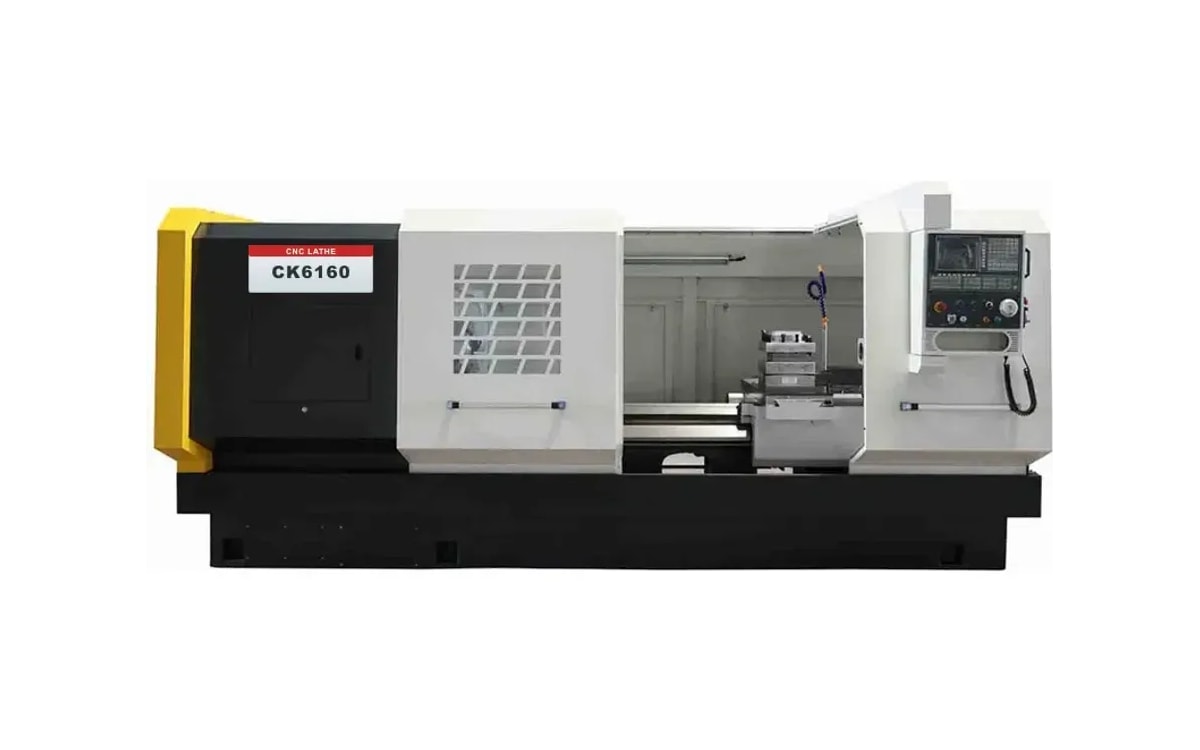

CK6160 - Heavy-Duty Large Swing Flat Bed CNC Lathe for Large Diameter Turning CK Series

CK6160

Meehanite FC-30

Heavy-Duty Large Swing Flat Bed CNC Lathe for Large Diameter Turning

Max Swing Over Bed Ø630 mm
Swing Over Carriage Ø380 mm
Distance Between Centers 1000 / 1500 / 2000 / 3000 mm
Spindle Bore Ø82 mm (Optional Ø105 mm)
View Specifications Instant Quote
